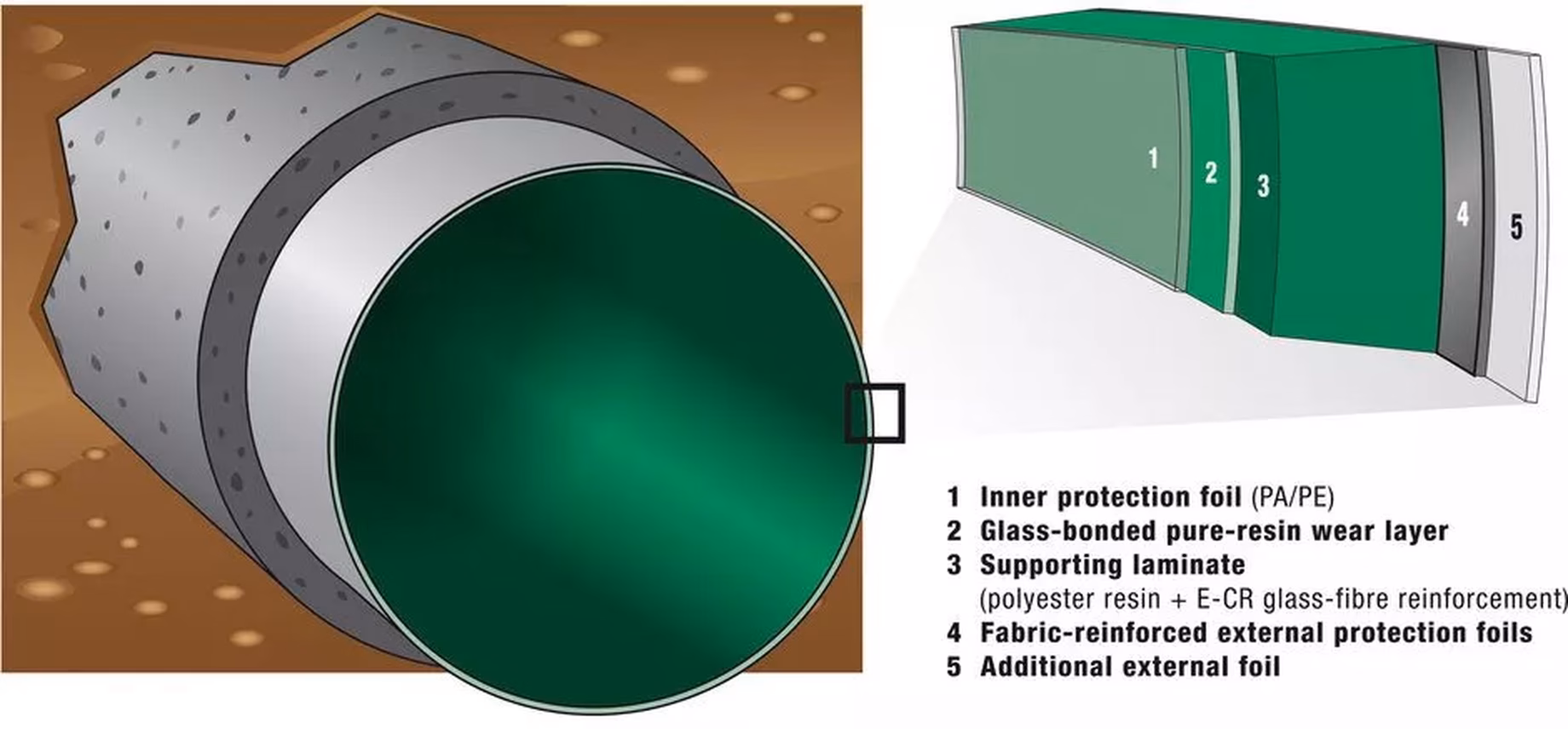

At a glance - Profile of the Brandenburger Liner
| Profile | Circular, oval, arch and special profiles |
|---|---|
| Diameters | DN 150 – 1600 (6″ – 64″) |
| Lengths | up to 300 metres (1000 ft) , depending on DN |
| Techn. values | Modulus of elasticity / Young modulus DIN EN 1228 = 14.200 N/mm² / 2.000.000 psi (long-term: 11,180 N/mm²) / 1.600.000 psi |
Our pipe liners are offered in two different versions. For the domestic sewage range, a UP resin (unsaturated polyester, acc. to DIN 18820 group 3; type 1140), which is temperature resistant up to 50 °C with normal sewage.
The second version is a VE resin (vinyl ester, acc. to DIN 18820 group 5; type 1310), which is recommendable for industrial wastewater. The resistance against chemicals depends on their concentration and temperatures up to 70 °C can be withstood.
